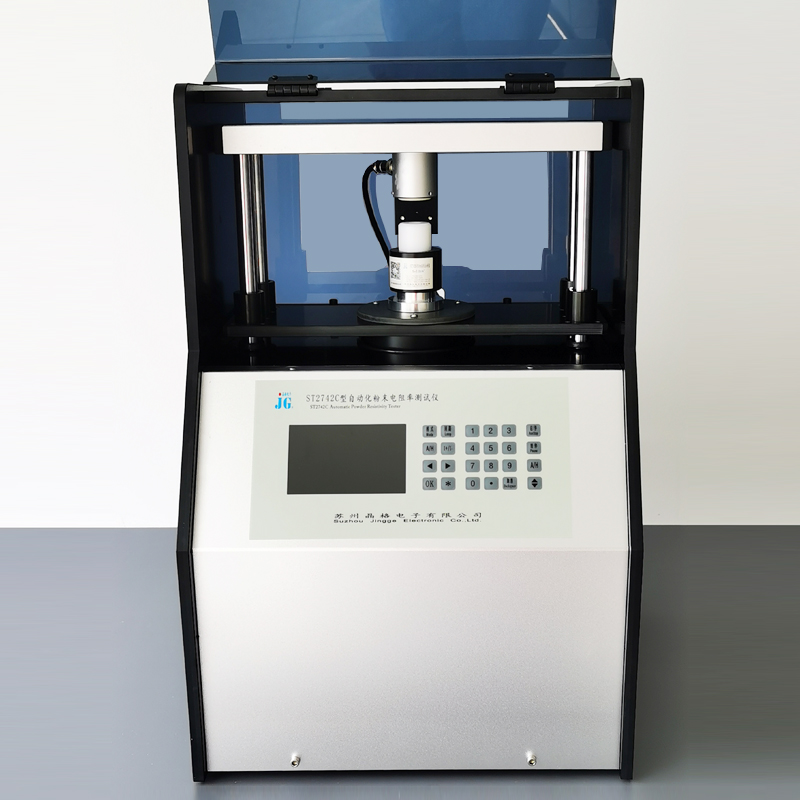

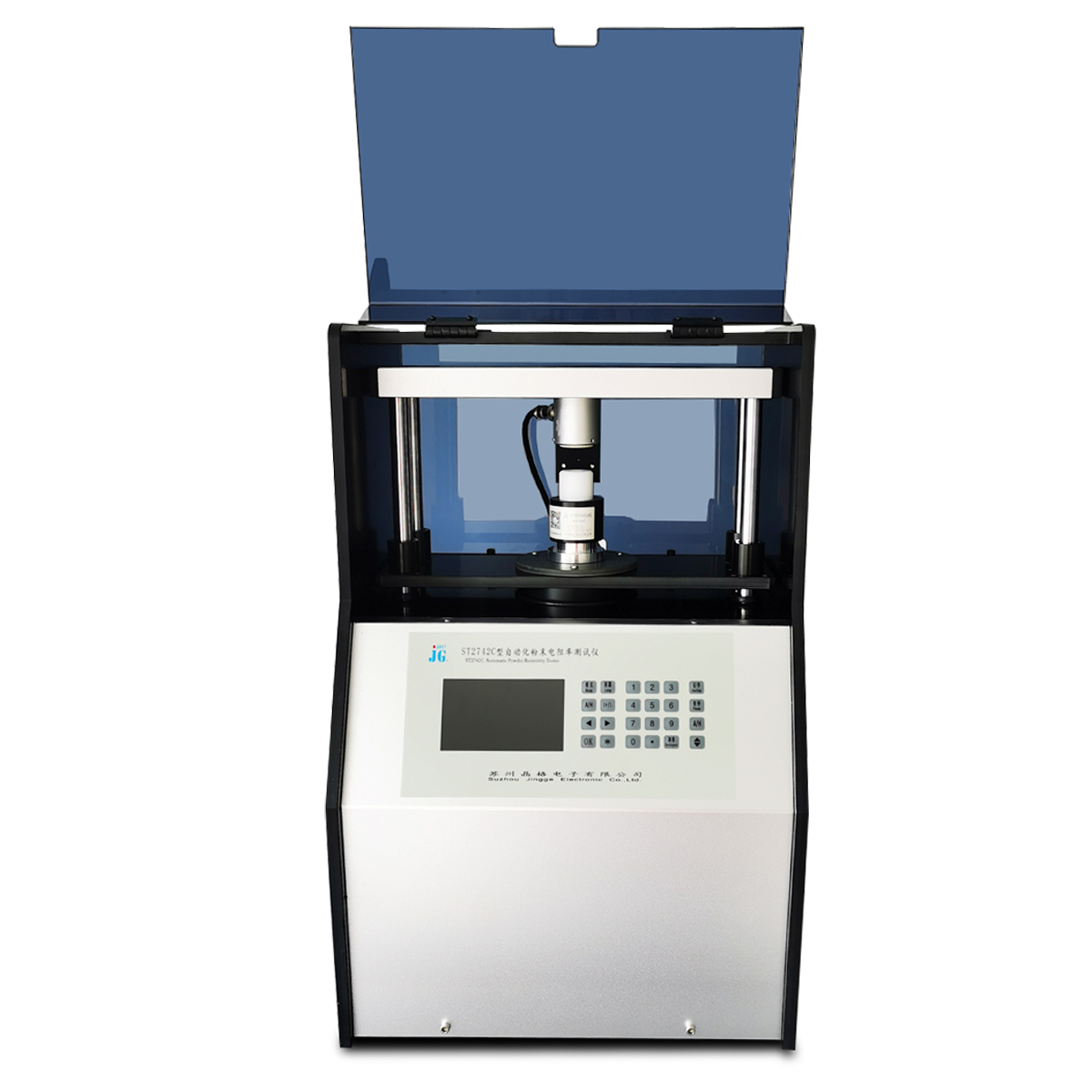

ST2742C Fully automatic powder resistivity tester

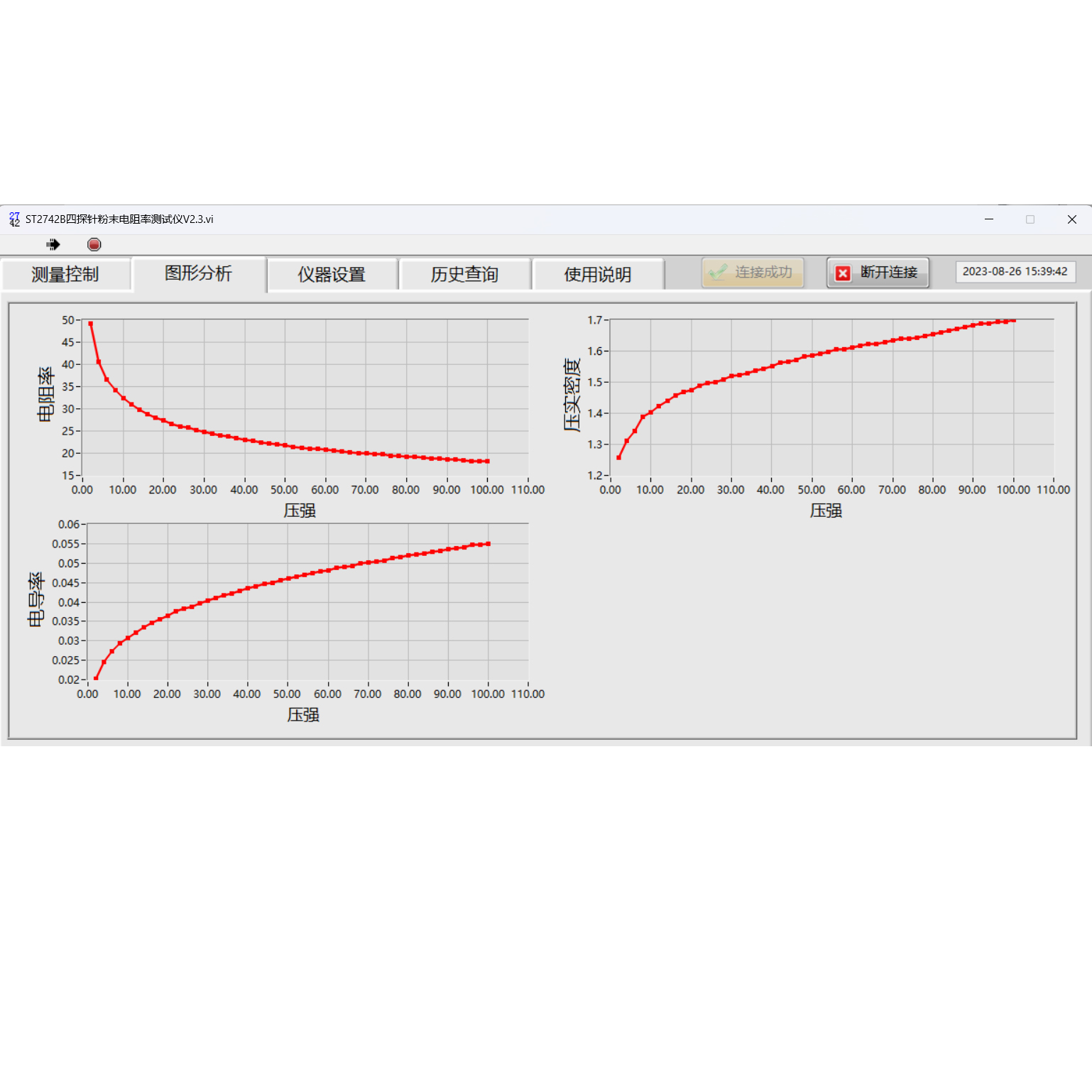

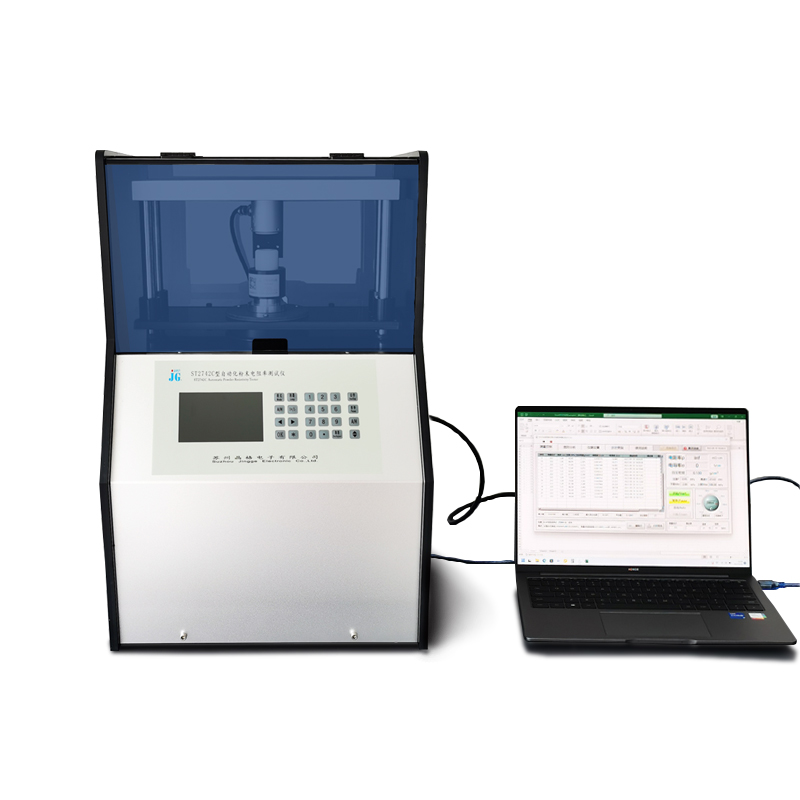

Basic functions The ST2742C automated powder resistivity tester is a measuring instrument that uses the four-probe method to test the "resistivity - pressure" and "compaction density - pressure" characteristics of powder. 2.2 Adopt the main national standards "GBT 1552-1995 Determination of Resistivity of Silicon and Germanium Single Crystals by Straight-line Four-Probe Method", "GBT 30835-2014 Carbon Composite Lithium Iron Phosphate Cathode Materials for Lithium-ion Batteries" "GBT 24521-2009 Method for Determining the Resistivity of Coke" and "GBT 40007-2021 Nanomaterials - Contact Method for Measuring the Resistivity of Nanomaterials - General Rules". 2.2 Instrument Set Composition: The main components of the entire set of instruments include: the measurement and control host, the automatic pressure control console, the automatic height sensor, the feeder, the four-probe electrode, and the corresponding PC measurement and control software modules, etc. 2.3 Advantages and Characteris…
