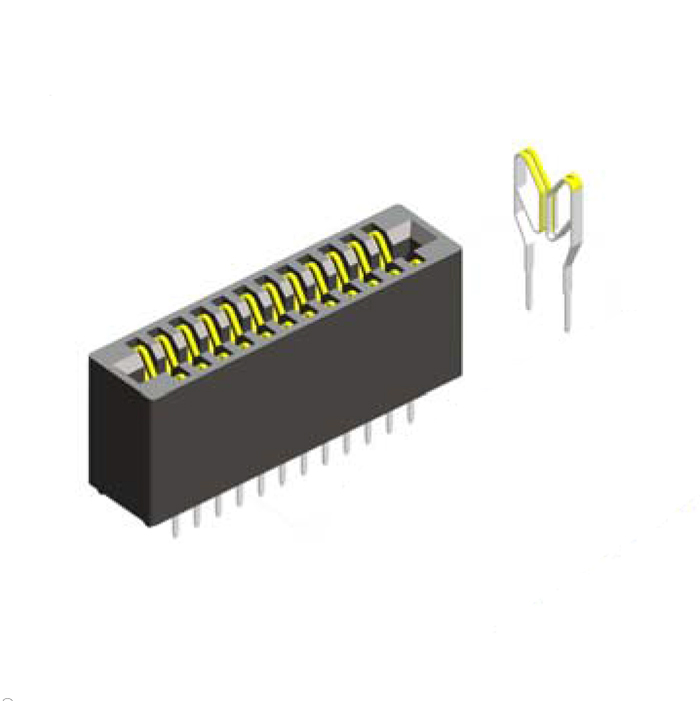

2.54mm Slot Straight DIP Pin Headers

2.54mm Slot Straight DIP Pin Headers Specifications: 1.CURRENT RATING:3AMP 2.DIELECTRIC WITHSTANDING VOLTAGE:1000V AC RMS 60Hz. 1MIN 3.CONTACT RESISTANCE:20 MILLIOHMS MAX 4.INSULATION RESISTANCE:5000 MEGOHMS MIN.At 500V DC 5.OPERATION TEMPERATURE:-55°C  TO +105°C 6.INSERTION FORCE:0.4Kgf MAX.Per Pair   Withdrawal Force:0.25Kgf  Mac.Per Pair  Insulator:PBT+G.F.(UL94V-0) CONTACT:BRASS OF PHOSPHOR BRONZE GOLD PLATED ON CONTACT AREA TIN PLATED ON SOLDER TAILS,OVER NICKEL
