FOTON 4x2 advertising trucks

  • FOTON 4x2 advertising trucks
  • FOTON 4x2 advertising trucks
  • FOTON 4x2 advertising trucks
  • FOTON 4x2 advertising trucks

FOTON 4x2 advertising trucks

    Payment Type: T/T,Money Gram,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Bag/Bags
    Delivery Time: 45 Days
    Packaging: Nude Cargo
    Productivity: 3000 sets / year
    Brand: CLW
    Transportation: Ocean
    Place of Origin: Suizhou, Hubei, China
    Supply Ability: 300 sets / month
    Certificate: ISO9001/CCC

Basic Info

Model No.: CLW5046XXCB5

Type: LED Advertising Truck

Intergrant: Large Screen System

Application: Public Service

Power Supply Mode: Own Generator-powered

Passenger Number: 3

Displacement: 3.0L

Fuel Type: Diesel Oil

LED Screen Type: PH10

LED Tube Core Type: IV

Self-powered: Self-powered

Outline Dimension: 5995x2025x2995mm

Product Description


Product Description

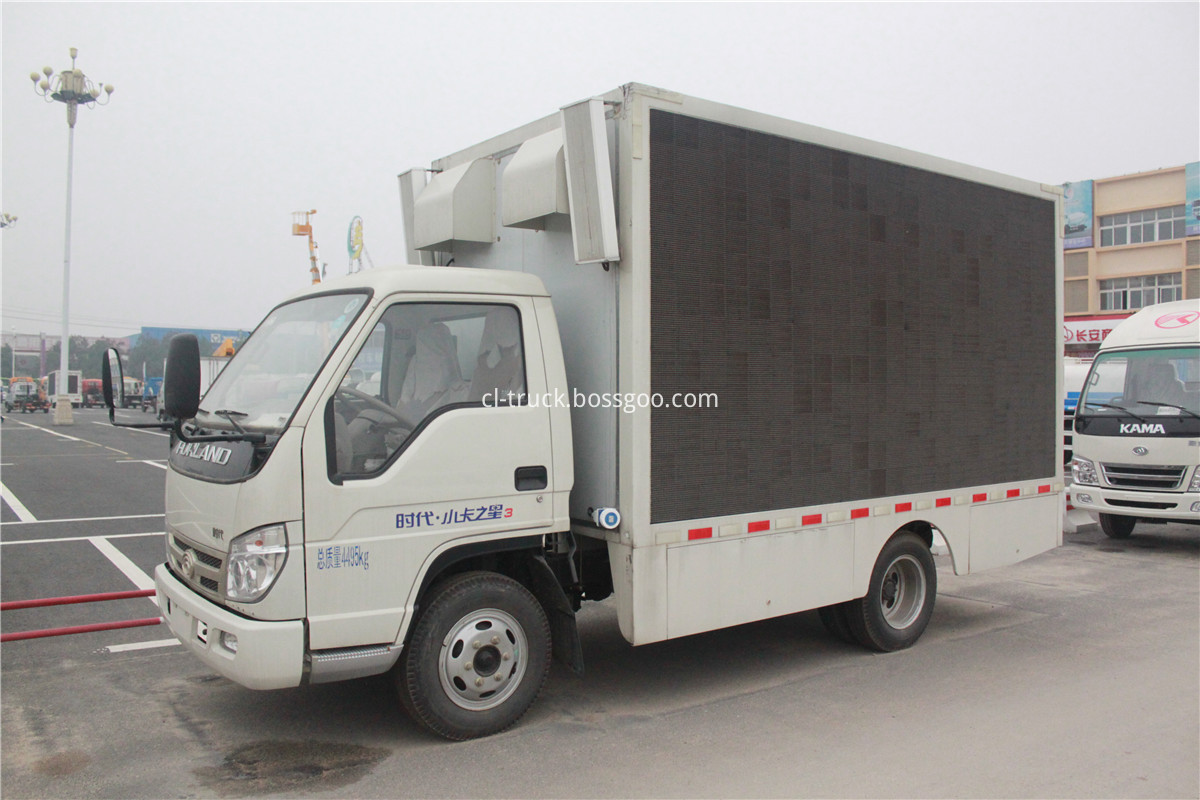

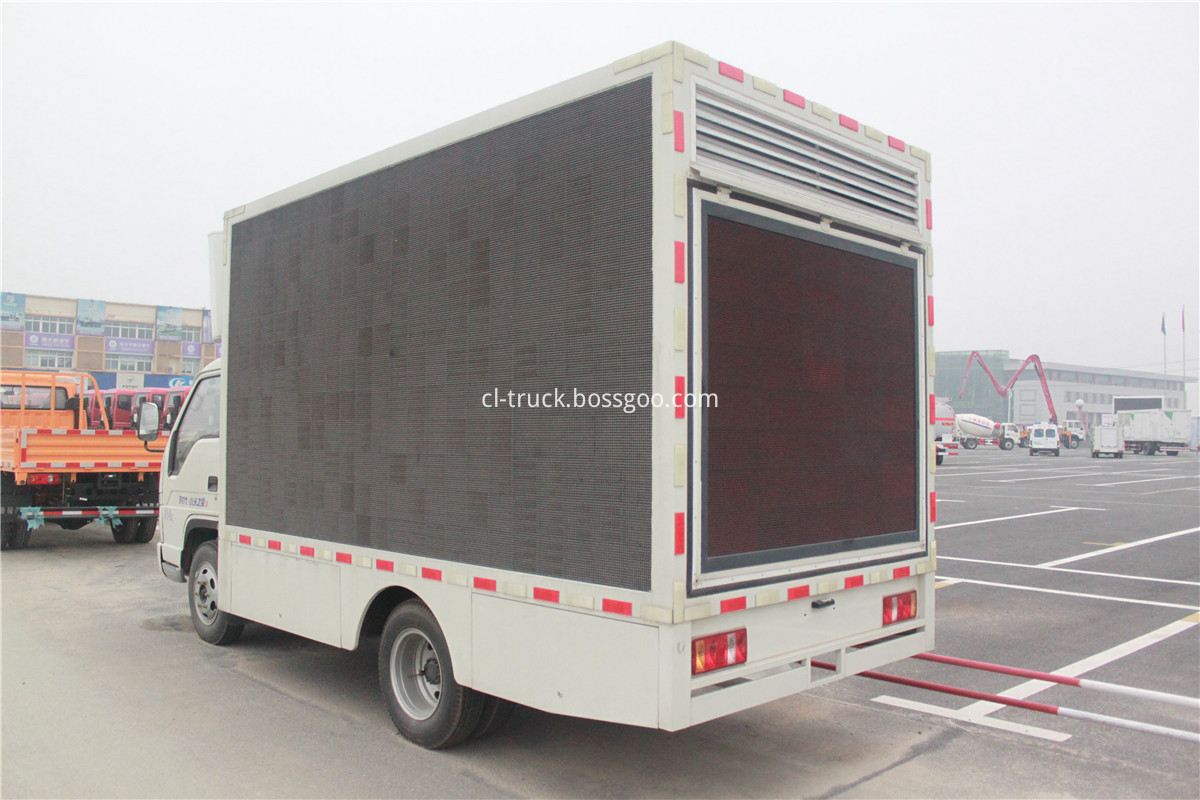

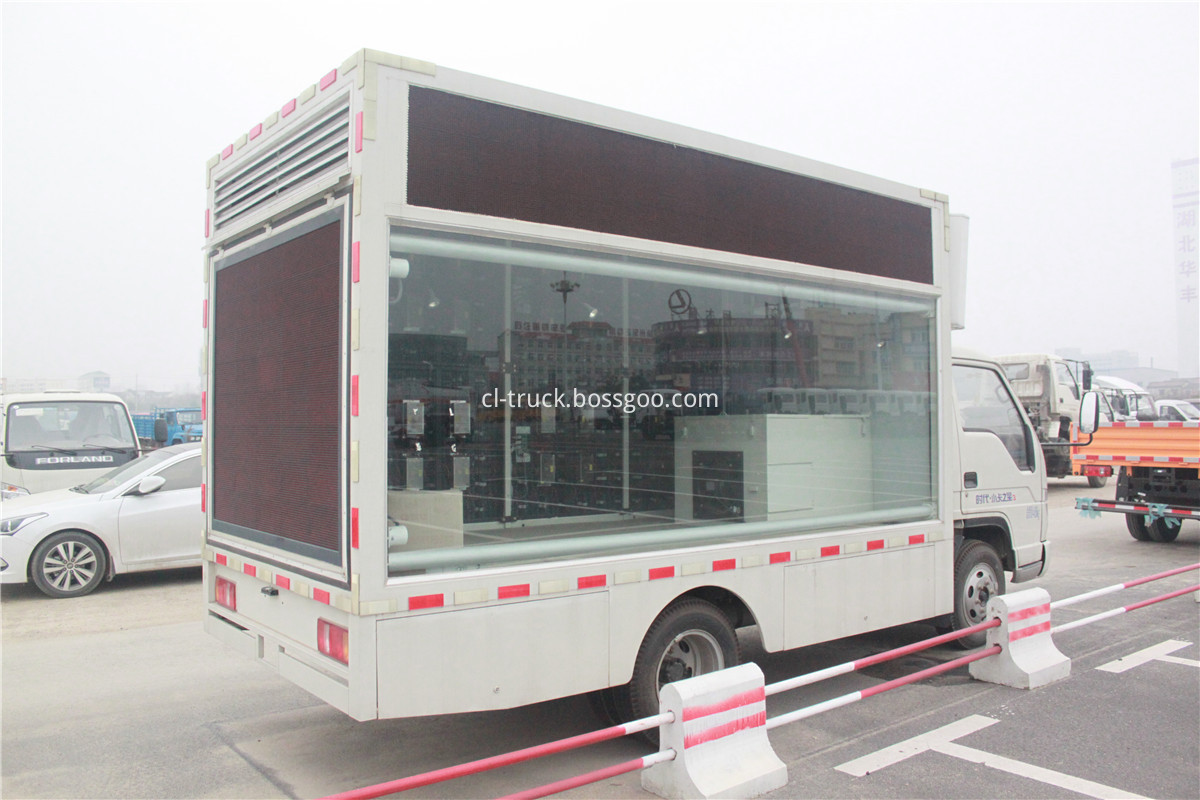

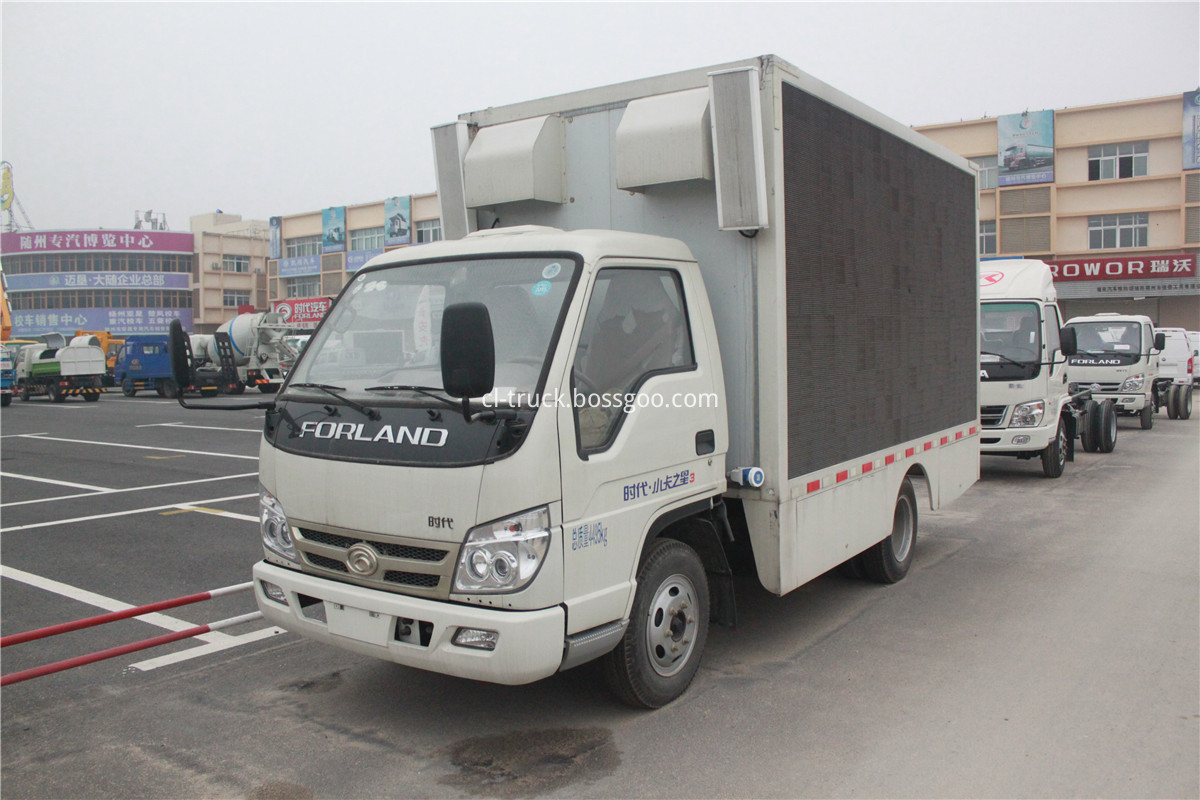

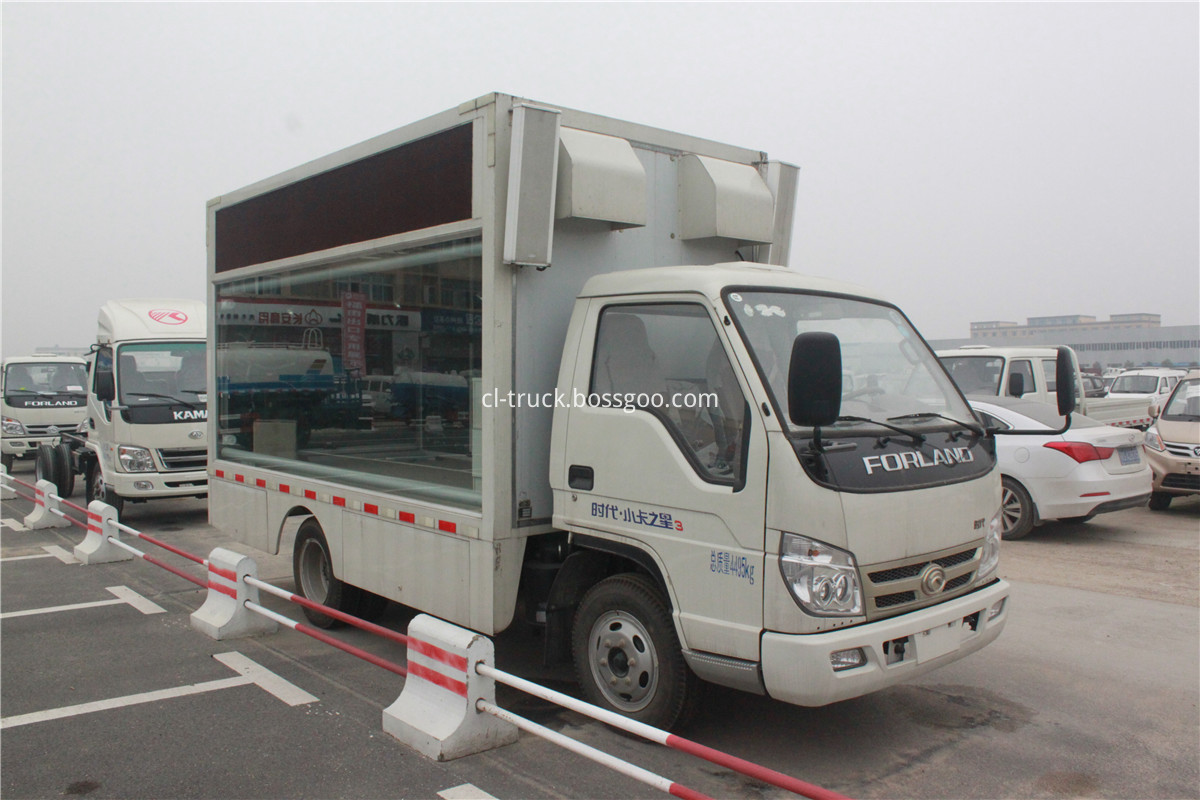

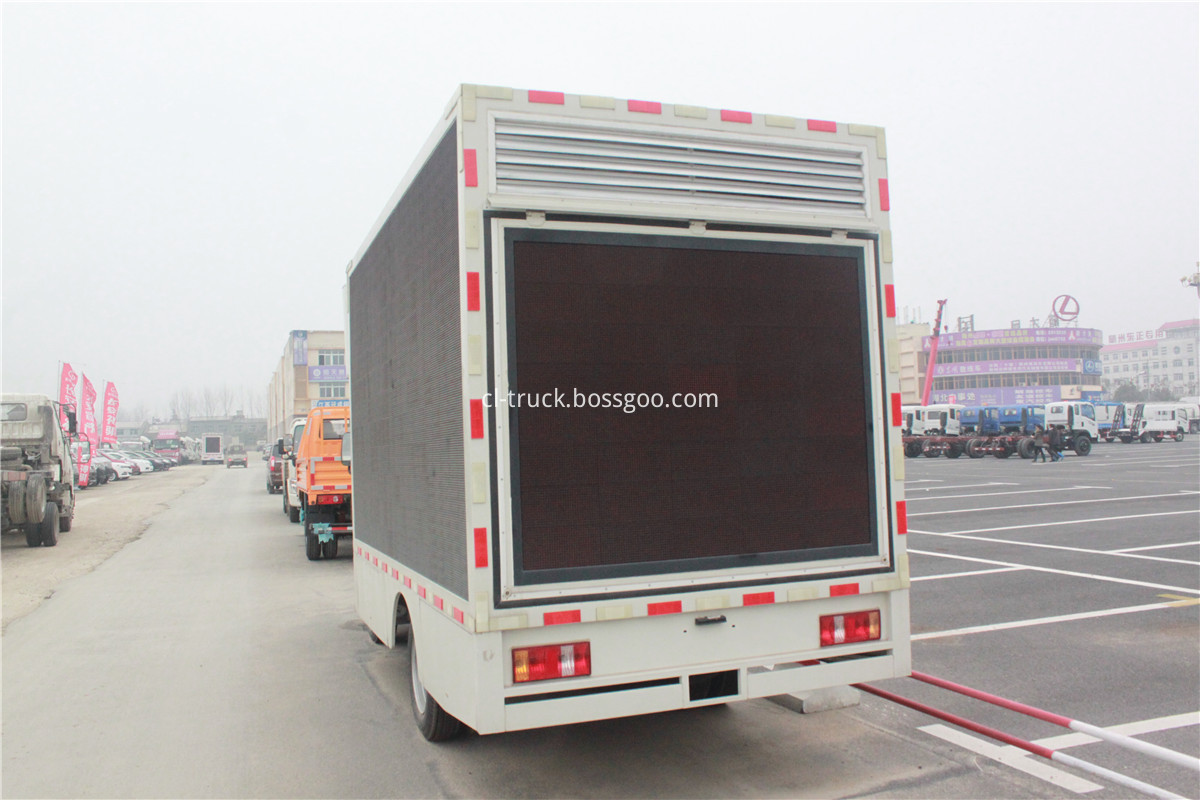

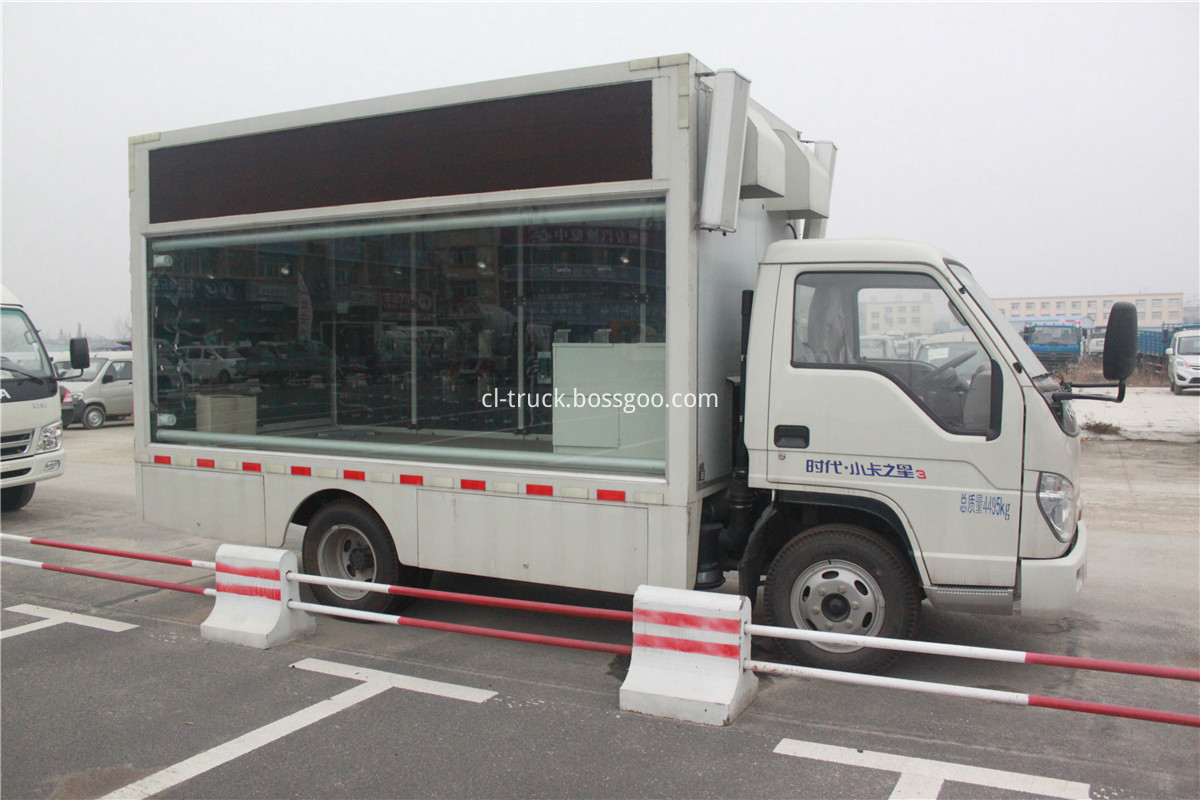

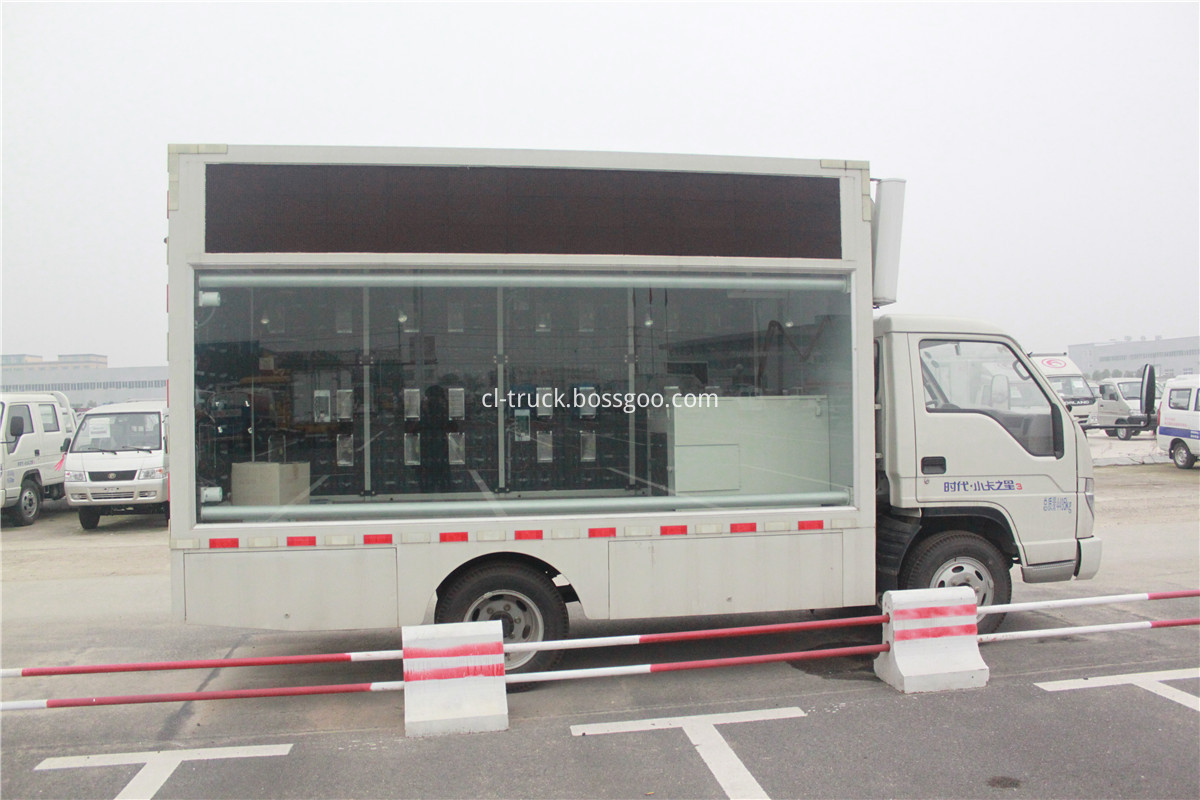

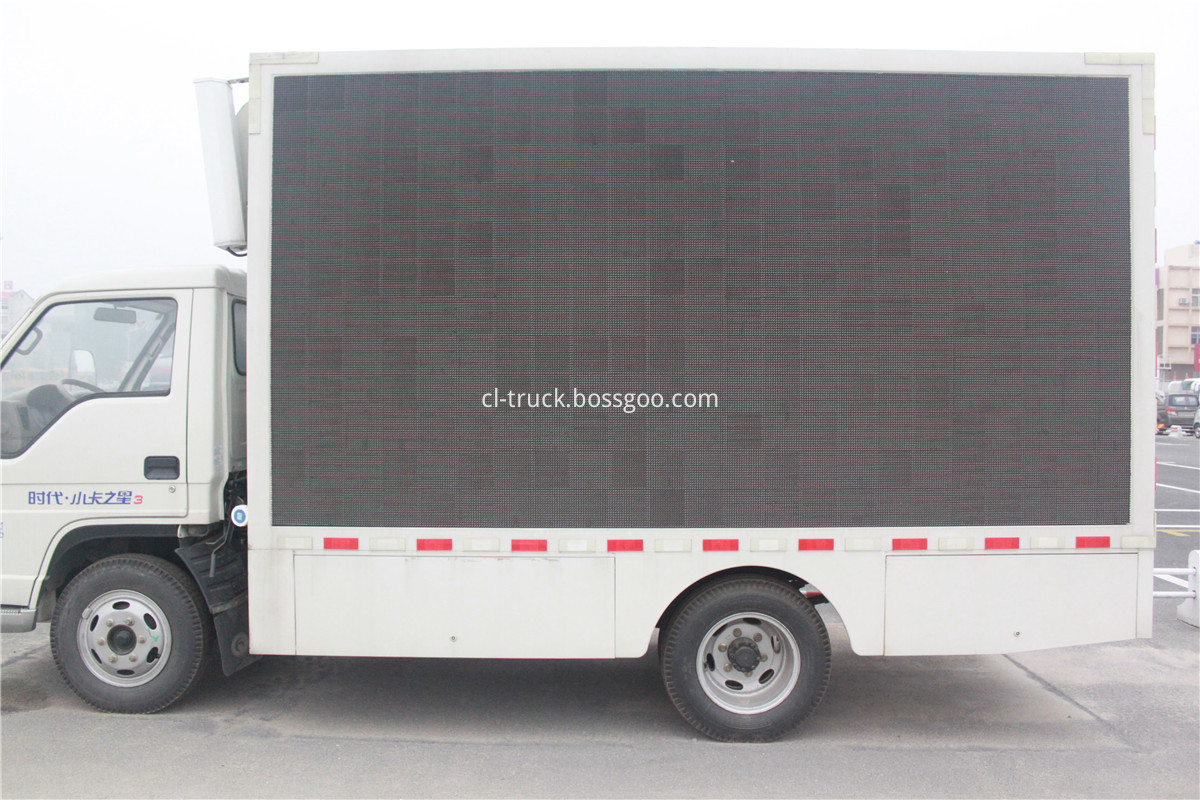

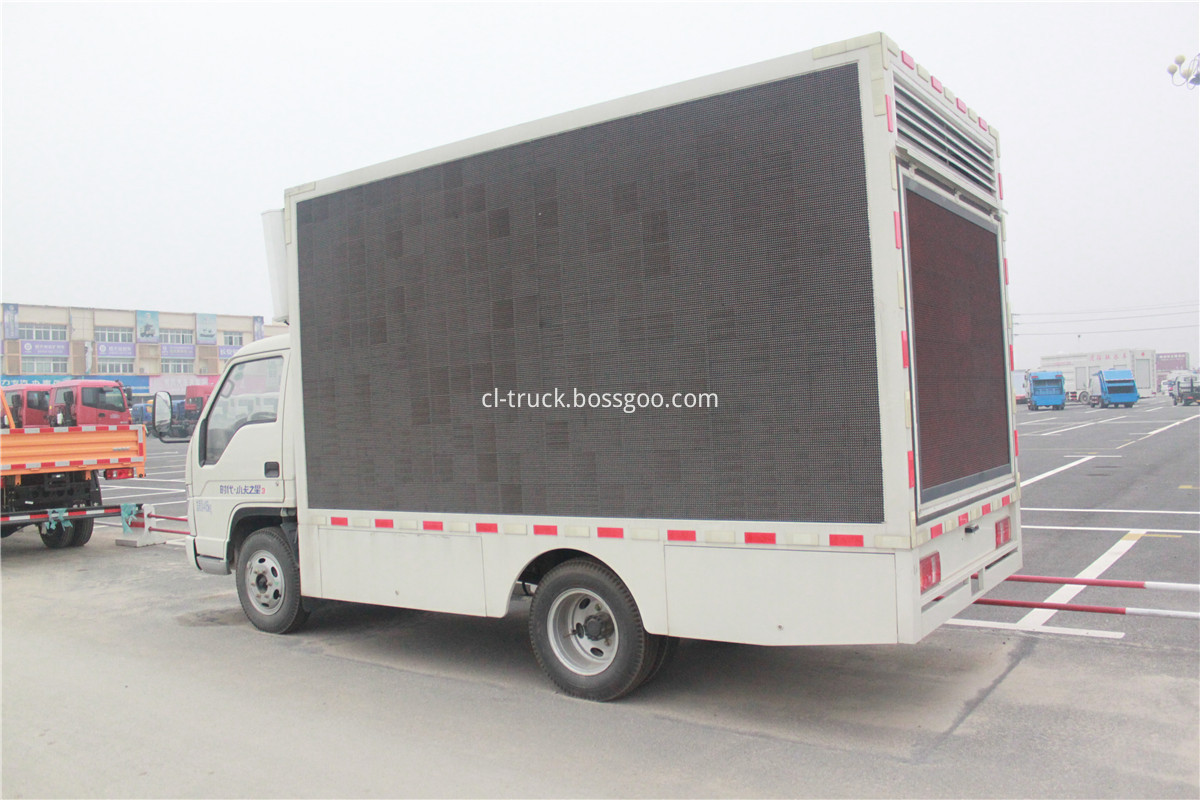

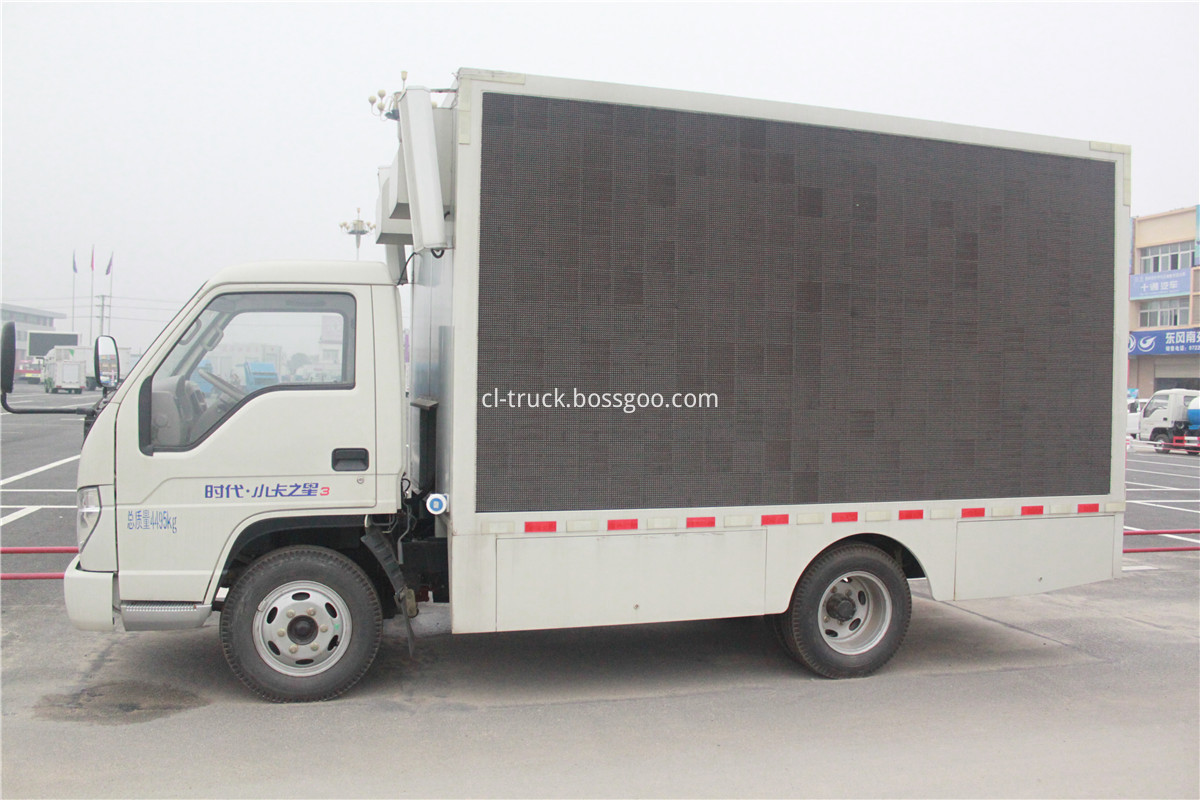

Small outdoor advertising led display screen truck



Brief Introduction


We are manufacture of mobile led advertising truck, led truck, led advertising truck, led screen in trailer,etc.

Our mobile led advertising truck with high quality and favorite price. It is Widely used for outdoor commercial advertising, live broadcasting, live meeting, banquet, party, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.Shown by video, graphics, animation etc, connect with PC .And remote control with asynchronous system, Wifi control, 3G control . P6 P8 P10 type screen is optional.



The advantages



1. Resist all the weathers----Solid

2. Working long time without the fault-----Reliability

3. Reaching the audience from far away---- High brightness
4. Using the high brightness LED with low power consumption----Energy Saving
5. Adapt to different cabinet size, and different cabinet design base on the real 6. using environment---Nimble

6. Low investment,high return-----Budget friendly



General Description

Overall Dimension(mm)

5995×2025*2995

Driving type

4*2,  left hand drive

Side  screen size(L*H)m2

3840*1760=6.8m2

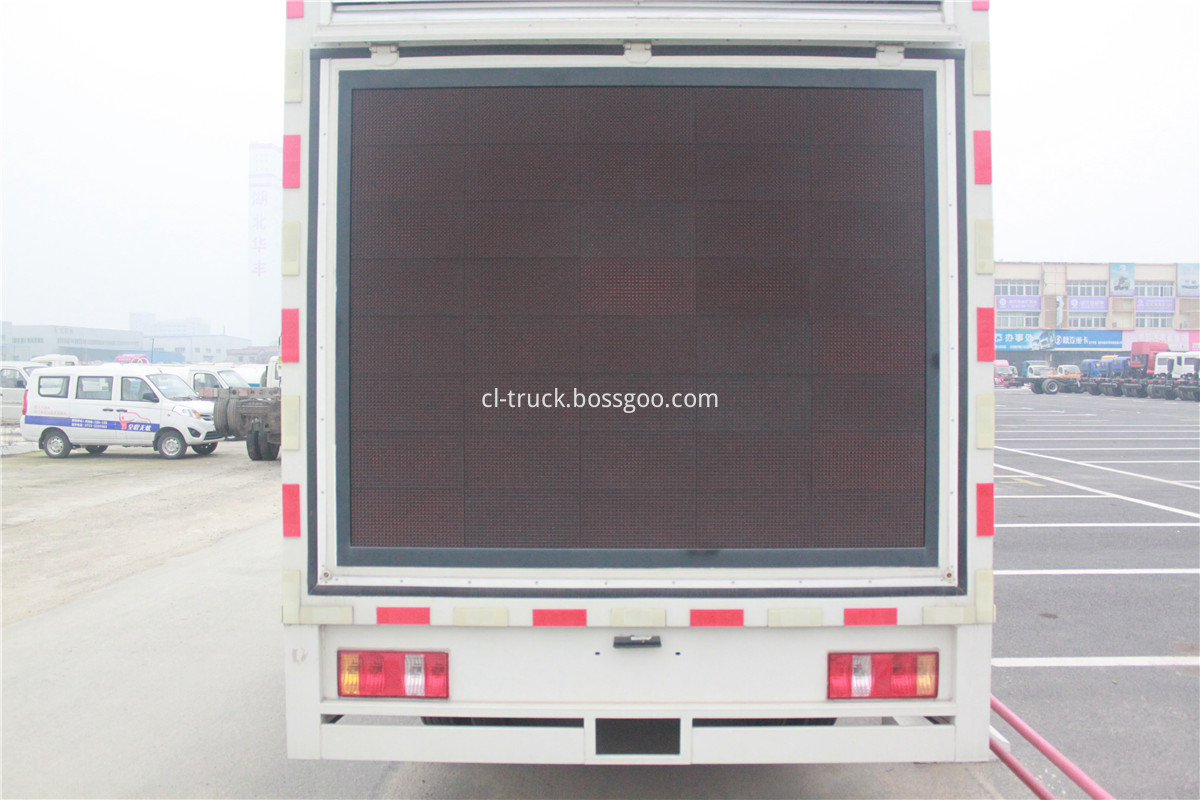

Back screen size(L*H)m2

1280*1440=1.84m2

Gross weight(kg)

4495

Number of Leaf Springs

4/6+7

Curb weight

4365Kg

Rated loading capacity kg



Wheel  base (mm)

3360 mm

Axle number

2

Approaching/Departure Angle

23/19(°)

F/R Axle load(kg)

1710/2785

Passengers in cab

2

Maximum speed(km/h)

90

Number of Tyres

6 (1 spare piece)

Tyre type

7.00-16  7.00R16LT

Front/Rear suspension(mm)

1085/1550,1130/1505

Front/Rear track base (mm)

1415/1485

Transmission

 5 speed forward with 1 reverse, manual

Fuel type

Diesel oil

Engine parameters

Brand

Dongfeng Chaoyang

Model

CY4102-CE4F

Displacement (L)

3.856 L

Emission Standard

EURO 4

Power (kw/hp)

73/99

Maximum torque

235N/m

Number of cylinders

4

Cylinder spread pattern

In-line

Intake type

Supercharged and mid-cooling

Rated rotation(rpm)

3200

Mobile Led Screen Truck Technology Parameter

Pixel Pitch :

10mm

Pixel Density :

10000 dots/m2

Brightness :

≥5600 cd/m2

Viewing Angle :

H:160°, V:120°

LED Specification :

SMD 2828

Pixel Configuration :

1R1G1B

Module Size :

320×160mm

Module Pixel Density :

32×16 dots

Driving Method :

1/4 scan

Refresh Rate :

≥960Hz

Gray Scale per Color :

65536 level

Control System :

Synchronous/off-line control system, fiber transmission

Working Voltage :

AC 110/220V

Working Temperature :

-20°C~50°C

Max. Power Consumption :

<700W/m2

Life-span :

>100,000hrs

MTBF :

>10,000hrs

Dead Dot Rate :

<0.0002

Re-mark

Standard configuration: two side LED   screen ( can be lifted), OUMA soundproof diesel generator set, circulating   ventilation cooling system, 2 pcs waterproof speakers, 1 pce power amplifier,   1 pce control console, 1 pce control system IPC ( Industrial Personal   Computer ), wood floor.
Optional parts: we can provide refitting of   three side or single side LED screen, ventilation opening on rear side, lights   around the vehicle, the LED screen size also can be customized.
