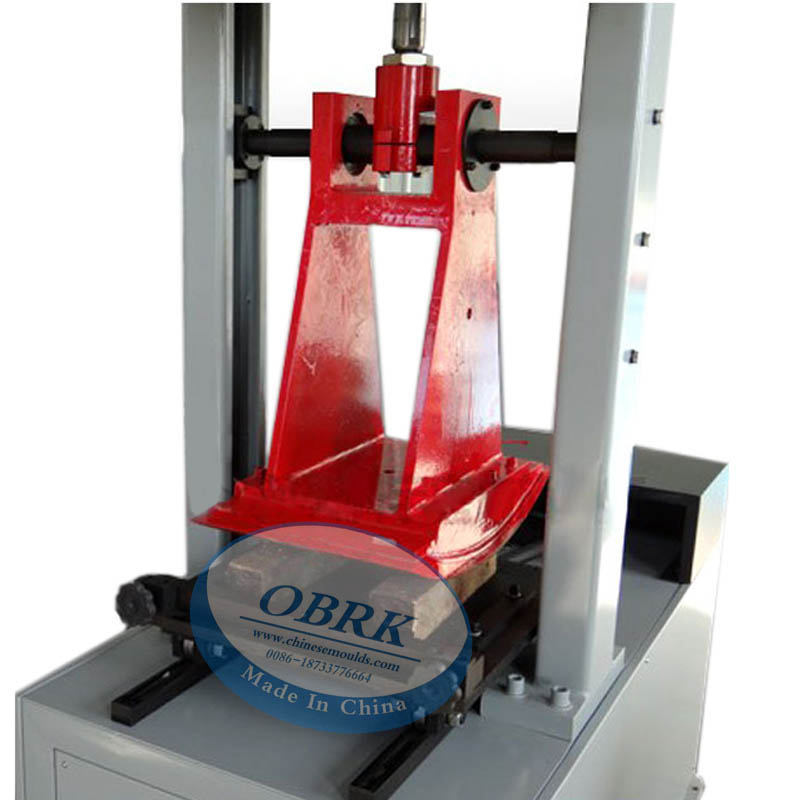

Asphalt Mixture Specimen Forming Machine/Hydraulic Asphalt Roller Compactor
Basic Info
Product Description Product Description  Asphalt Mixture Specimen Forming Machine/Hydraulic Asphalt Roller Compactor

Product name

Asphalt Mixture Specimen Forming Machine

Size of test mould

300x300x50/100mm

Rolling and compacting wheel

Radius: 500mm Width: 300mm

Speed

10±1r/min

Rolling pressure

0-20KN

Crushed tile preheating

20~200℃

Power supply

380V 50Hz

Dimension

1750mmx1216mmx640mm

Weight

350kg

  The Roller Compactor is considered to be the method of laboratory specimen compaction that results in slabs of asphaltic paving materials with properties that most closely simulate those of materials in the highway. Slabs can be compacted to target mixture densities using loads that are equivalent to those of full-Scale compaction equipment.  There are pneumatic and hydraulic two model. QCX-4P is pneumatic powered and controlled by a programmable logic controller (PLC) connected to an HMI which the operator can use to select the number of passes. QCX-4H is driven by hydraulic system. A manual pressure control is adjusted to set the required load.     Packaging & Shipping   Packaging Details Deval Abrasion Testing Machine is standard export wooden case. Port any port in china/Deval Abrasion Testing Machine We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe. We can ship By EMS,TNT,DHL and Others ( door to door)   Company Information                 Cangzhou Oubeiruike Instrument And Equipment Co., Ltd. The company was founded in 2013, it is located in the hometown of Chinese Kung Fu Cangzhou. Here adjacent to the Beijing airport, Tianjin port. Huanghua port is a local port with convenient transportation. Oubeiruike is mainly engaged in the foreign trade of various instruments and equipments.   The Main products: concrete test mode, cement test mode, constant stress test machine, universal testing machine, test box, concrete and cement products performance test instruments and so on. Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester .... We assure high quality to you.   Quality certificate   our customer   Contact Information

Contact us if you need more details on Asphalt Roller Compactor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Hydraulic Asphalt Roller Compactor、Bituminous Roller Compactor. If these products fail to match your need, please contact us and we would like to provide relevant information.
